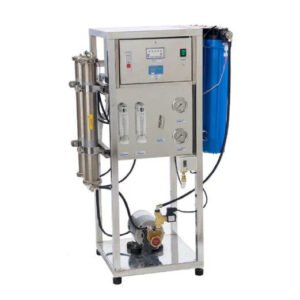

Industrial Reverse Osmosis System – High-Efficiency Aquapro 500 GPD

This industrial reverse osmosis system is designed for reliable brackish water treatment applications up to 2,000 mg/L TDS. The Aquapro 500 GPD RO system features dual 2521 membranes, digital control, and a compact stainless steel frame for commercial and light-industrial use.

Industrial Reverse Osmosis System – Technical Summary

• Capacity: 500 GPD

• Water Type: Brackish

• Max TDS: 2,000 mg/L

• Membranes: Dual 2521

• Application: Commercial & Light Industrial

This compact brackish water reverse osmosis (RO) system is designed for reliable treatment of moderate to high-TDS source water where space, efficiency, and control are critical. Featuring dual 2521 RO membranes, a Procon high-pressure pump, and advanced digital monitoring, the system delivers consistent permeate quality with excellent salt rejection.

The Aquapro 500 GPD unit is a compact industrial RO system designed for brackish water treatment up to 2,000 mg/L TDS.

Ideal for commercial, light-industrial, laboratory, agricultural, and process water applications, this RO unit offers robust performance in a small footprint.

---

Triple-Stage Pre-Filtration & Pump Protection

The system is fitted with a triple 20” × 2.5” filter housing assembly, consisting of:

• 5 micron sediment filter

• 10 micron carbon block

• 1 micron sediment filter

These cartridges are installed specifically to protect the RO pump and membranes and are not intended as full system pre-treatment. Routine cartridge replacement is essential to minimise pressure loss, prevent fouling, and ensure long-term system reliability.

---

Key Features & Controls

• Concentrate Flow Meter: 0.2–2 GPM (7 LPM)

• Permeate Flow Meter: 0.2–2 GPM (7 LPM)

• Recycle Flow Meter: 0.1–1 GPM (4 LPM)

• Source Water Pressure Gauge: 0–200 PSI

• RO Outlet Pressure Gauge: 0–500 PSI

• 3 × 20” × 2.5” Pre-Filters (2 × Sediment, 1 × Carbon)

• Low Pressure Switch

• 1/2” Inlet Solenoid Valve

• 1/2” Automatic Flush Solenoid Valve

• Stainless Steel Needle Valves (Recycle & Concentrate)

• Check Valve on Recycle Return Line

• Power ON/OFF Switch

• Provision for External Float Switch (not supplied)

---

Advanced Monitoring & Automation

• Online conductivity monitoring with high-limit alarm

• Temperature monitoring

• Adjustable automatic flush sequence

• 3.5” LED digital display

• Visual status indicators for:

  • Low feed pressure

  • Low pressure

  • High pressure

  • Tank full

  • Auto flush

---

Technical Specifications

System Type

• Brackish Water Reverse Osmosis System

Performance (at 25°C, 2,000 ppm TDS)

• Feed Flow: 0.47 m³/hr

• Permeate Flow: 0.08 m³/hr

• Recovery: Up to 50%

• Salt Rejection: 95–98%

Operating Conditions

• Maximum Operating Pressure: 200 PSI

• Inlet Pressure Range: 40–90 PSI

• Maximum Water Temperature: 45°C

---

Membrane & Filtration System

• Membrane Housings: 2 × 2521 Fibreglass

• RO Membranes: 2 × CSM RE-2521-BE

• Pre-Filtration:

  • 1 × 5 µm Sediment

  • 1 × 10 µm Carbon

  • 1 × 1 µm Sediment

---

Pump, Motor & Electrical

• Pump: Procon 1533-112A125F11BA

  • 225 PSI | 125 GPH

• Motor: Marathon Electric

  • 1/2 HP | 240V | 50Hz

• Controller: ROC 2315 Microprocessor

• Electrical Supply: 1.6 m power cord with 10A plug

---

Construction & Connections

• Frame: Stainless Steel

• High-Pressure Piping: Reinforced

• Connections:

  • 3/4” Feed Inlet

  • 1/2” Concentrate

  • 1/2” Permeate

  • 1/2” Recycle

---

Dimensions

• 1200 mm (H) × 730 mm (W) × 530 mm (D)

---

Typical Applications for an Industrial RO System

This industrial reverse osmosis system is commonly used for brackish water supply, process water, and irrigation applications.

• Brackish water RO treatment

• Commercial and light-industrial water supply

• Process and make-up water

• Agricultural and irrigation systems

• Laboratory and pilot-scale RO systems

• Pretreatment for advanced purification systems

🔹 Why Choose This Industrial Reverse Osmosis System?

This industrial reverse osmosis system is engineered for consistent brackish water treatment in commercial and light-industrial environments.

• Compact footprint for easy installation

• High salt rejection (95–98%)

• Designed for brackish water up to 2,000 mg/L TDS

• Stainless steel frame for durability

• Simple operation with digital controller

🔹 Frequently Asked Questions

What type of water is this system designed for?
This industrial reverse osmosis system is designed for brackish water with TDS up to 2,000 mg/L.

Does this system require pretreatment?
Yes. Pretreatment requirements depend on the feed water quality and should be confirmed by water analysis.

Is the system suitable for continuous operation?
Yes. The system is suitable for commercial and light-industrial duty cycles.

Need Help Designing the Right RO System?

Water quality varies — and the right RO system starts with the right design.
 Send us your water analysis, and our specialists will help design a complete, fit-for-purpose treatment solution tailored to your application.

For higher capacities, view our range of industrial reverse osmosis systems designed for larger commercial and industrial applications.
