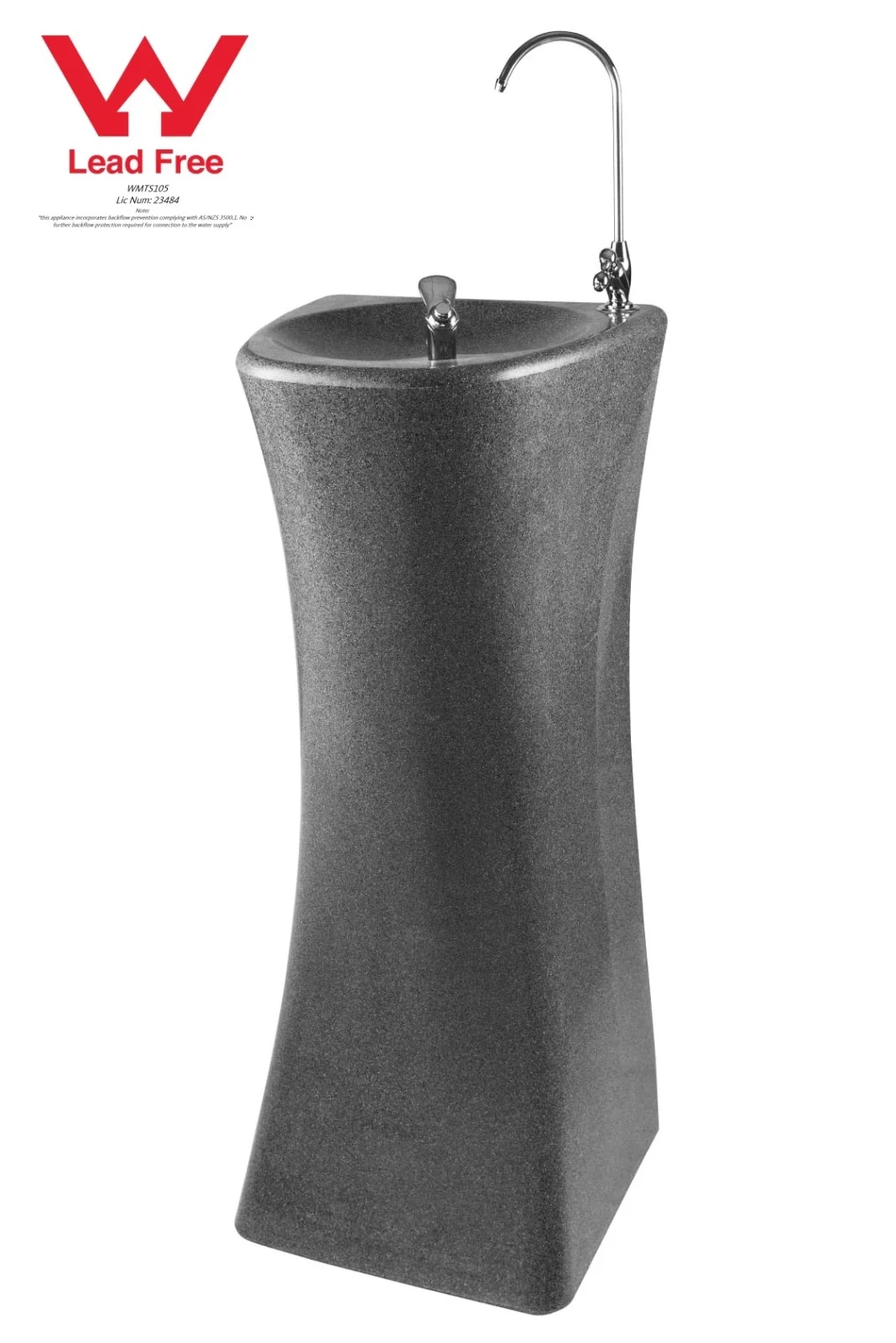

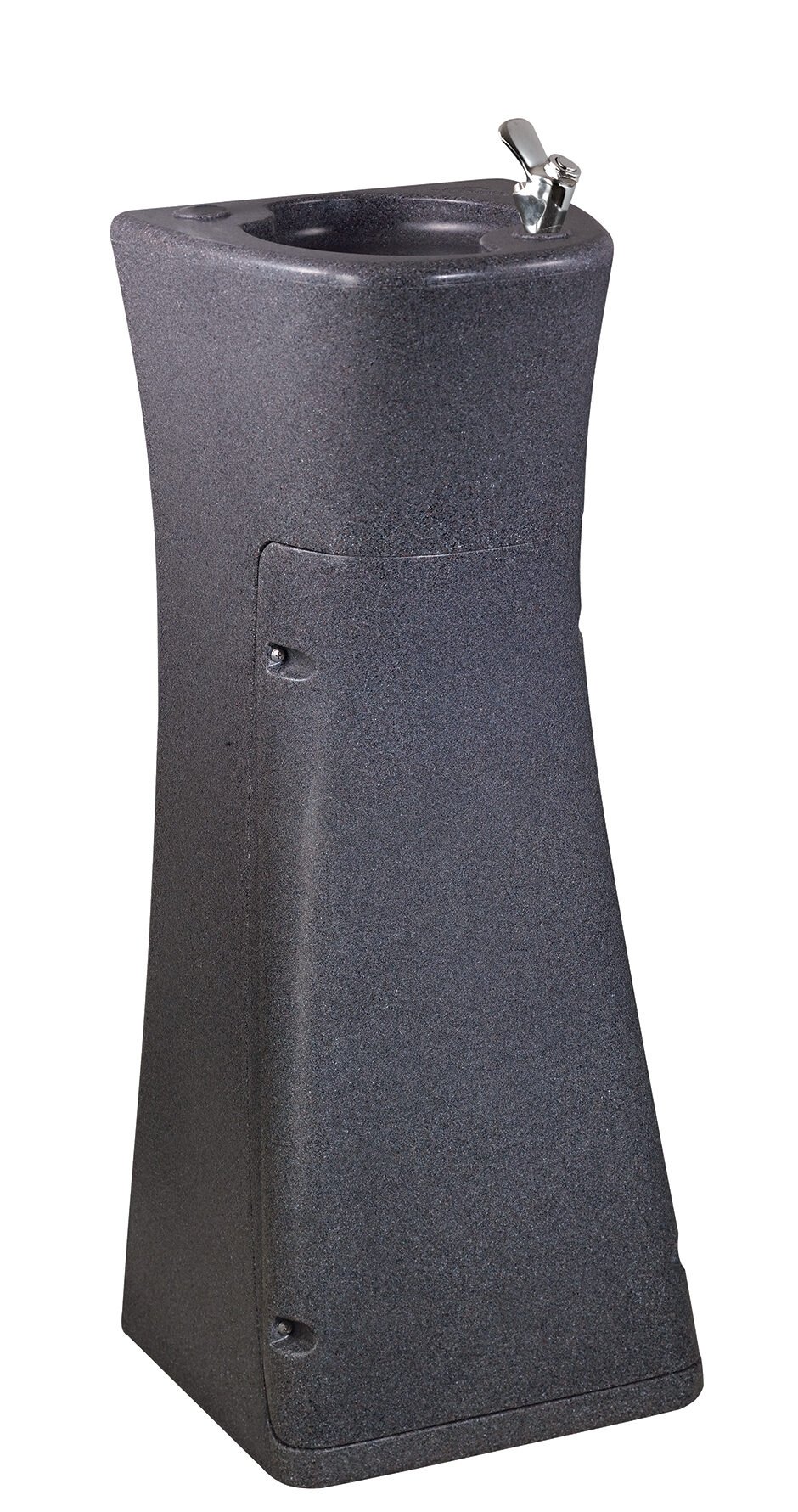

RM33 Chilled Water Bubbler Fountain

Water Bubbler Fountain GENERAL FEATURES

RUST PROOF CABINET: The RM Series water bubbler cooler cabinets are made of rota-moulded, pigmented polyethylene. This U.V. stabilised material provides an external cabinet which is durable, modern and 100% rust proof. Now comes with IP33 Rating

SERVICE ACCESS: The front access panel is secured with four (4) concealed screws. Removal of this panel provides access for any purpose including service, maintenance and filter replacement.

VANDAL RESISTANCE: The top and basin on the RM Series
is a single piece, (not numerous parts screwed together). This, combined with the internally fitted drain grill and the robust nature of polyethylene, provides unequalled vandal resistance.

Water Bubbler Fountain OPTIONAL FEATURES:

TWO WAY GLASS FILLER: When fitted to the standard, (bubbler only) unit, the 2 way glass filler allows one touch activation for precise pouring or hands free for continuous flow.

INSTALLATION CONNECTIONS

ELECTRICAL: A 1.5 metre cordset with standard 3 pin plug is provided. The RM Series of water coolers do not have any specialised power requirements and can be plugged into any standard 240V 1PH 50Hz power point.

WATER INLET: The inlet is an industry standard 1/2” female BSP threaded connection situated on the rear of the cooler, (see installation instructions for exact rough in details).

DRAIN OUTLET: The drain outlet and integrated ‘P’ trap provide an industry standard 40mm connection situated on the rear of the cooler. (see installation instructions for exact rough in details).

WARRANTY

1 YEAR COMPREHENSIVE WHOLESALE WARRANTY: The entire range of Waterworks RM Series water coolers is covered by a 1 Year Comprehensive Warranty (copy available on request). The warranty provides comprehensive parts and labour coverage, for the period of 1 years from the date of original sale.

SHIPPING DETAILS

PACKED WEIGHT: 28kg
PACKED VOLUME: 0.208M3
PACKED DIMENSIONS: 420mmW x 420mmD x 1180mmH

CAPACITIES CHART

* Based on intermittent use under environmental conditions of
ARI Standard 1010 and installation requirements of ARI Standard 1020.

**Due to our policy of continuous development,specifications are subject to change without notice.

***Colours are as close to actual as printing processes allow.
